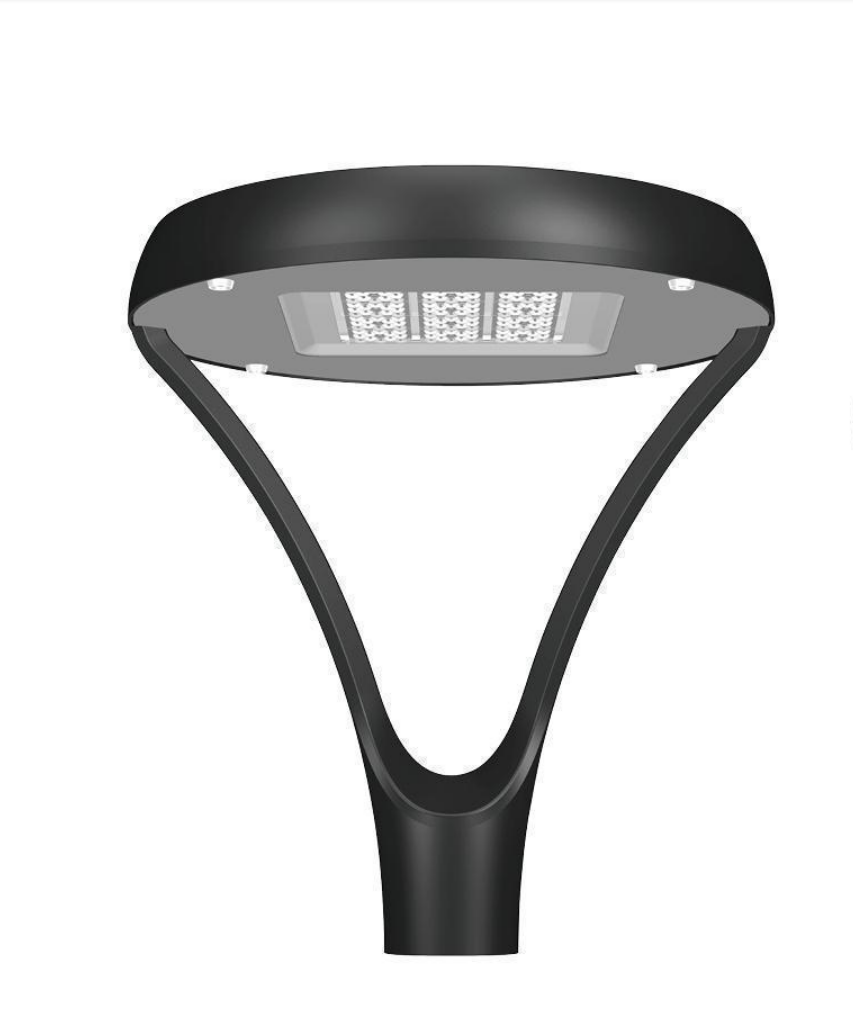

Led Toppost Light 60W-120W (R2020F)

Led Toppost Light 60W-120W (R2020F)

Led Toppost Light 60W-120W (R2020F)

Product Size: D500*468mm

Base: D60/76mm

Driver is dimmable (1-10V Or DALI) or Non-Dimmable Optional

Total Lumens is according to project's requirements.



Model No. LUMILEDS 3030 + MOSO X6 LUMILEDS 3030 + MOSO X6 LUMILEDS 3030 + MOSO X6 LUMILEDS 3030 + MOSO X6
Description Description Description Description
SY-R2020F Wattage: 60W Wattage: 75W Wattage: 100W Wattage: 120W
Input Voltage: 90-305Vac 50/60Hz Input Voltage: 90-305Vac 50/60Hz Input Voltage: 90-305Vac 50/60Hz Input Voltage: 90-305Vac 50/60Hz
Ingress Protection : IP 66 Ingress Protection : IP 66 Ingress Protection : IP 66 Ingress Protection : IP 66
IK: 08 IK: 08 IK: 08 IK: 08
Electrical Safety Class: Class I Electrical Safety Class: Class I Electrical Safety Class: Class I Electrical Safety Class: Class I
Operating Temperature: -40 - +40℃ Operating Temperature: -40 - +40℃ Operating Temperature: -40 - +40℃ Operating Temperature: -40 - +40℃
Color Temperature: 2700K -6500K Color Temperature: 2700K -6500K Color Temperature: 2700K -6500K Color Temperature: 2700K -6500K
LED Chip: Lumileds 3030 LED Chip: Lumileds 3030 LED Chip: Lumileds 3030 LED Chip: Lumileds 3030
No of Chip: 72 No of Chip: 96 No of Chip: 112 No of Chip: 126
DRIVER: MOSO-X6 SERIES DRIVER: MOSO-X6 SERIES DRIVER: MOSO-X6 SERIES DRIVER: MOSO-X6 SERIES
Lumen per Watt: >120lm/watt Lumen per Watt: >120lm/watt Lumen per Watt: >120lm/watt Lumen per Watt: >120lm/watt
