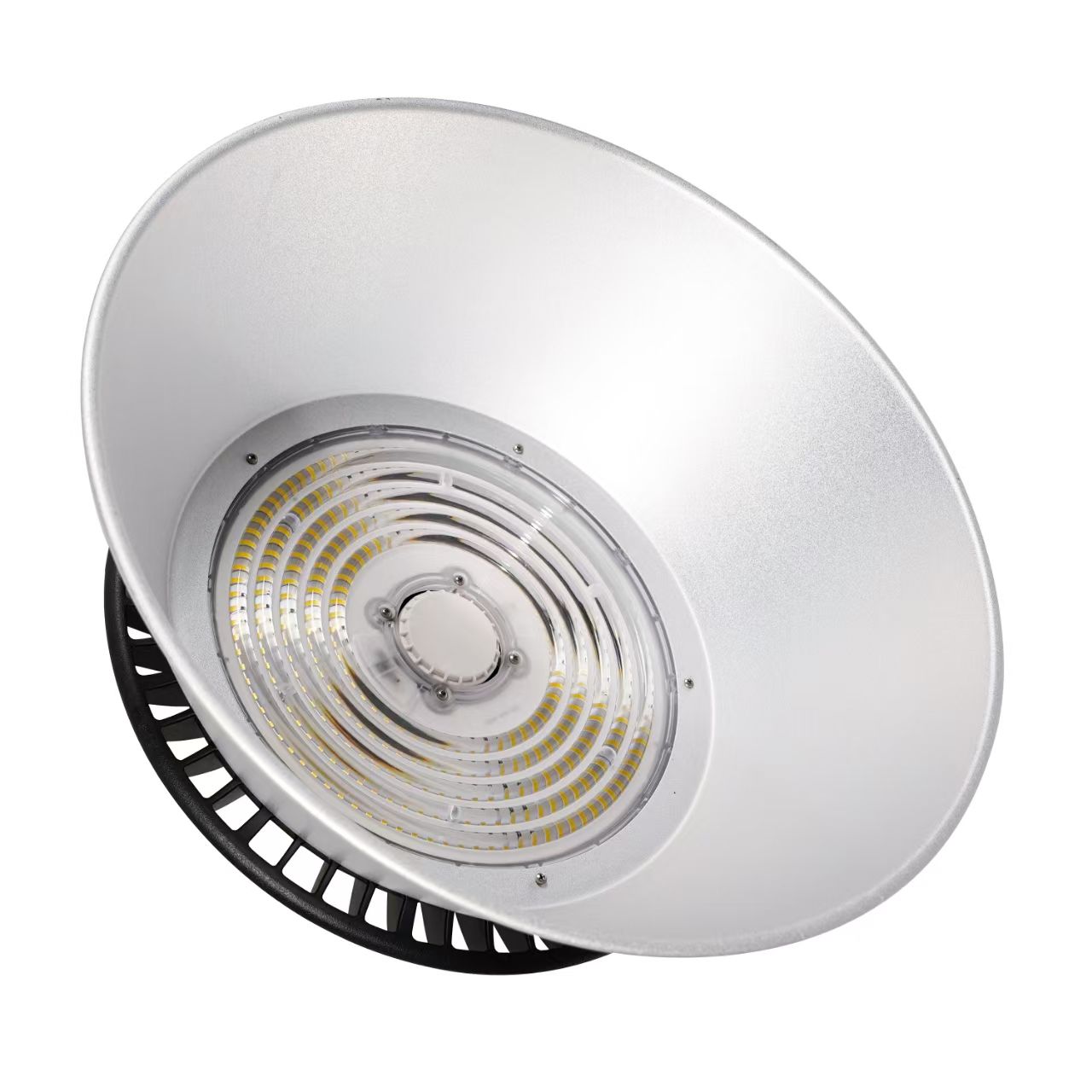

8009 UFO High light
Parameter
| LUMINAIRE SPECIFICATION | |||||
| POWER | 100W | 150W | 200W | 240W | |
| Total Flux | 16000 | 24000 | 32000 | 38400 | |
| System Effecency Lumen | 160lm | 160lm | 160lm | 160lm | |
| No. of Chip | 140 | 224 | 280 | 336 | |
| Fitting Materials | ADC12 Die-cast Aluminium Non-corrosive | ||||
| Fitting Color | Black | ||||
| Optical Cover | PC | ||||
| Ingress Protection (IP) | IP 65 | ||||
| Impact Protection | IK 08 | ||||
| Input Voltage | 220-240 Vac 50/60Hz | ||||
| Diming | 1-10V/0-10V | ||||
| Power Factor (PF) | >0.95 | ||||
| Electrucal Safety class | Class I | ||||
| Operating Temperature | -40~ +40°C | ||||
| Surge Protection | 4KV/4KV | ||||
| Installation | Hook Mounting | ||||
| External Screw | #304 Stainless Steel | ||||
| Beam Angles | 60/90/120° | ||||
| Warranty | 5 year | ||||
| Packing | 66*25.5*25.5cm （5pcs/cartom) | 70*30.5*30.5cm （5pcs/cartom) | 70*30.5*30.5cm （5pcs/cartom) | 72*35.5*35.5 （5pcs/cartom) | |
| LED MODULE SPECIFICATION | |||||
| LED Chips | 2835 HIigh Lumen Chip | ||||
| Lifetime Metric @ Ta 25° ( hours ) | >100,000 | ||||
| Colour Correlated Temperature (CCT) | 2700K ~ 6500K （Other CCT & CRI are available upon request.） | ||||
| Colour Rendering Index (CRI) | ≥ 70 | ||||
| COMPLIANCE STANDARD | |||||
| LED | LM 80 | ||||
| Luminaire | EN60598-1, EN60598-2-1, EN62471, EN62493, EN61000-3, EN61547, EN55015 | ||||
| Optional Item (SENSOR) | |||||
| SENSOR FUNTION | |||||
| 15m maximum installation height, suitable for most warehouses | |||||
| 0-10V dimming port, 3 or 2 step dimming function | |||||
| Dim+/Dim- to set occupancy light level | |||||
| Daylight priority function | |||||
| SENSOR PARAMETERS |
|||||
| Operating Frequency | 5.8 GHz ±75 MHz，ISM Band | ||||
| Transmitting power | 1mW Max. | ||||
| Hold time | 5S/30S/1min/3min/5min/10min/20min/30min | ||||
| Stand-by DIM Level | 10%(1.4-1.6V), 20%(1.9-2.1V), 30%(2.9-3.1V), 50% (4.9-5.1V) | ||||
| Stand-by Period | 0s/10S/1min/3min/5min/10min/30min/+∞ | ||||
| Detection Area | 25%/50%/75%/100% | ||||
| Daylight Sensor | Daylight threshold: 5lux/15Lux/30Lux/50Lux/100lux/150lux/Disable | ||||
| Daylight priority: ON/OFF value (5lux/15Lux/30Lux/50Lux)/150Lux 100Lux/200Lux 150Lux/300Lux |
|||||
| Detecting Angle | 150°(wall mounting) 360°(ceiling mounting) | ||||
