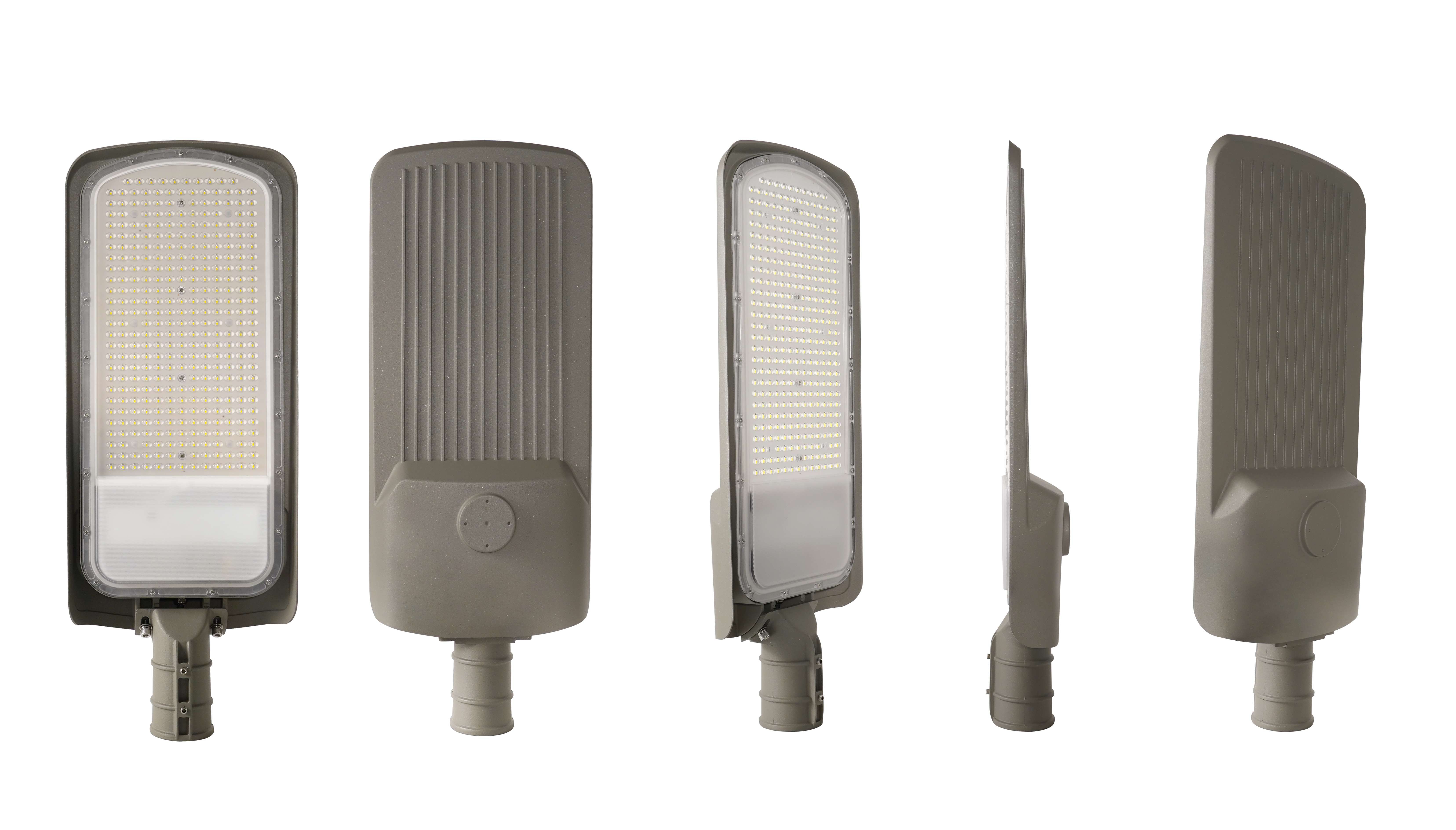

New Products 6058 Led Street light features:
- Wattage range from 50w to 180w.
- Multiple light distributions to meet different application.
- 5Years warranty
- IP65, IK07;
- Adjustable Tilt Angle(Deg): -15 to 15° adjustable
- System Efficacy Lumen per Watt: >140lm/watt
-
-
LUMINAIRE SPECIFICATION Power (W) 50W 100W 150W 180W Total Flux 7000LM 14000LM 21000LM 25000LM System Effecency Lumen > 140lm/watt > 140lm/watt > 140lm/watt > 140lm/watt No. of Chip 72 pcs 144 pcs 224 pcs 224 pcs Fitting Materials ADC12 Die-cast Aluminium Non-corrosive Fitting Color Black , Dark Grey ( Other Color are available upon request) Optical Cover PC Lens Ingress Protection (IP) IP 65 Impact Protection IK 07 Input Voltage 220-240Vac ± 10% 50/60Hz 120-277Vac ± 10% 50/60Hz 120-277Vac ± 10% 50/60Hz 120-277Vac ± 10% 50/60Hz Power Factor (PF) >0.95 Electrucal Safety class Class I Operating Temperature -40~ +35°C Surge Protection 4/6KV 10KV Installation Ø40mm/50mm side Entry Ø50mm/60mm side Entry Ø50mm/60mm side Entry External Screw #304 Stainless Steel Beam Angles Type II Warranty 5 year Packing(L*W*H)CM 46*18*12 cm 54*22*12cm 63.5*27*12.5cm 63.5*27*12.5cm Weight(G.W/N.W) (Kg) 1.32/1.9 kg 2.4/2.9 kg 3.32/4.0kg 3.32/4.0kg LED MODULE SPECIFICATION LED Chips 2835 chip ( Other LED chip brand are available upon request) Lifetime Metric @ Ta 25°(hours） >100,000 Colour Correlated Temperature (CCT) 2700K ~ 6500K （Other CCT & CRI are available upon request.） Colour Rendering Index (CRI) ≥ 70 COMPLIANCE STANDARD LED Chip LM 80 Driver CE, EN550155, EN 61000, EN61547 Luminaire CE,EN60598-1, EN60598-2-1, EN62471, EN62493, EN61000-3, EN61547, EN55015
