LED park luminaires with PMMA diffuser 606

LED park luminaires with PMMA diffuser 606

LED park luminaires with PMMA diffuser 606

Description:

1,Power:40-60W

2,Working temperature:-40℃/+50℃

3, Protection class: IP54

4, Impact resistance class:IK08 IK09

5, Safety class:I

6, Power Supply lighting protection:3;6;10KV(optional)

7, Dimming:1-10V;DALI;Midnight dimming

8, Mounting: top entry Ø76mm

9, Warranty:5 years

10, Material:Diecasting aluminum

Parameter:

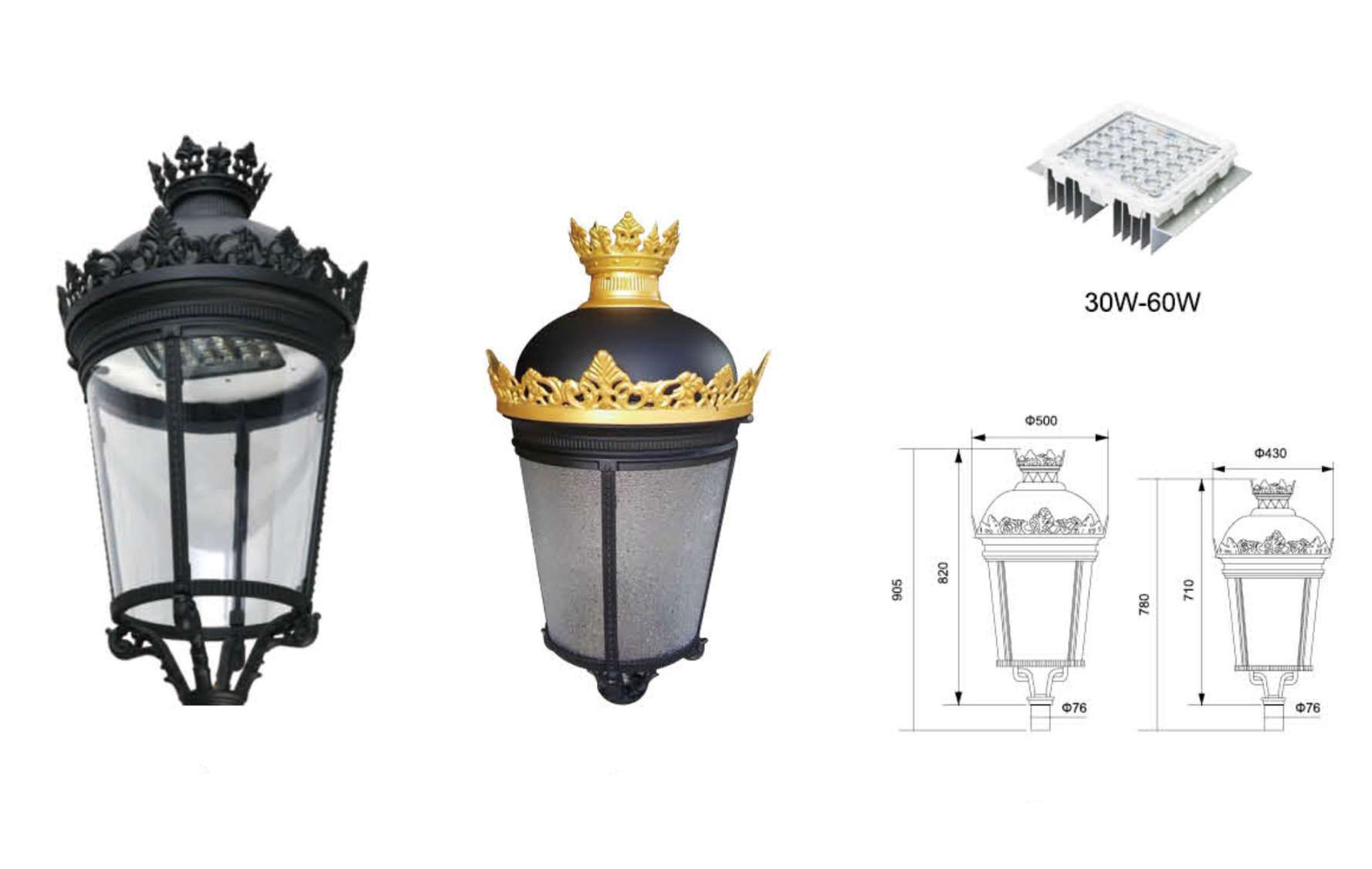

Item Model Product Size House Weight Installtion Spigot Led Brand Driver Brand CCT SPD Protect Class Warranty
1 SY-606A-40W D500*820mm N.W. 10 kg
G.W. 11.5 kg
76/60/27mm Lumileds 3030
48Leds
Meanwell XLG 3000-6500K   10KV+10KA  IP66
>=IK08
5Years
SY-606A-60W Lumileds 3030
63Leds
Inventronics
EUC
SY-606A-80W Lumileds 3030
96Leds
Meanwell Inventronics
2 SY-606B-40W D430*710mm N.W. 7.8kg
G.W. 9kg
76/60/27mm Lumileds 3030
48Leds
Meanwell XLG 3000-6500K   10KV+10KA  IP66
>=IK08
5Years
SY-606B-60W Lumileds 3030
63Leds
Inventronics
EUC
SY-606B-80W Lumileds 3030
96Leds
Meanwell Inventronics
