Description:
1, Power:20-90W
2, Color temperature:3000K,4000K,5000K,6000K
3, Working temperature:-40℃/+50℃
4, Protection class: IP66
5, Impact resistance class:IK08
6, Safety class:I
7, Power Supply lighting protection:3;6;10KV(optional)
8, Dimming:1-10V;DALI;Midnight dimming

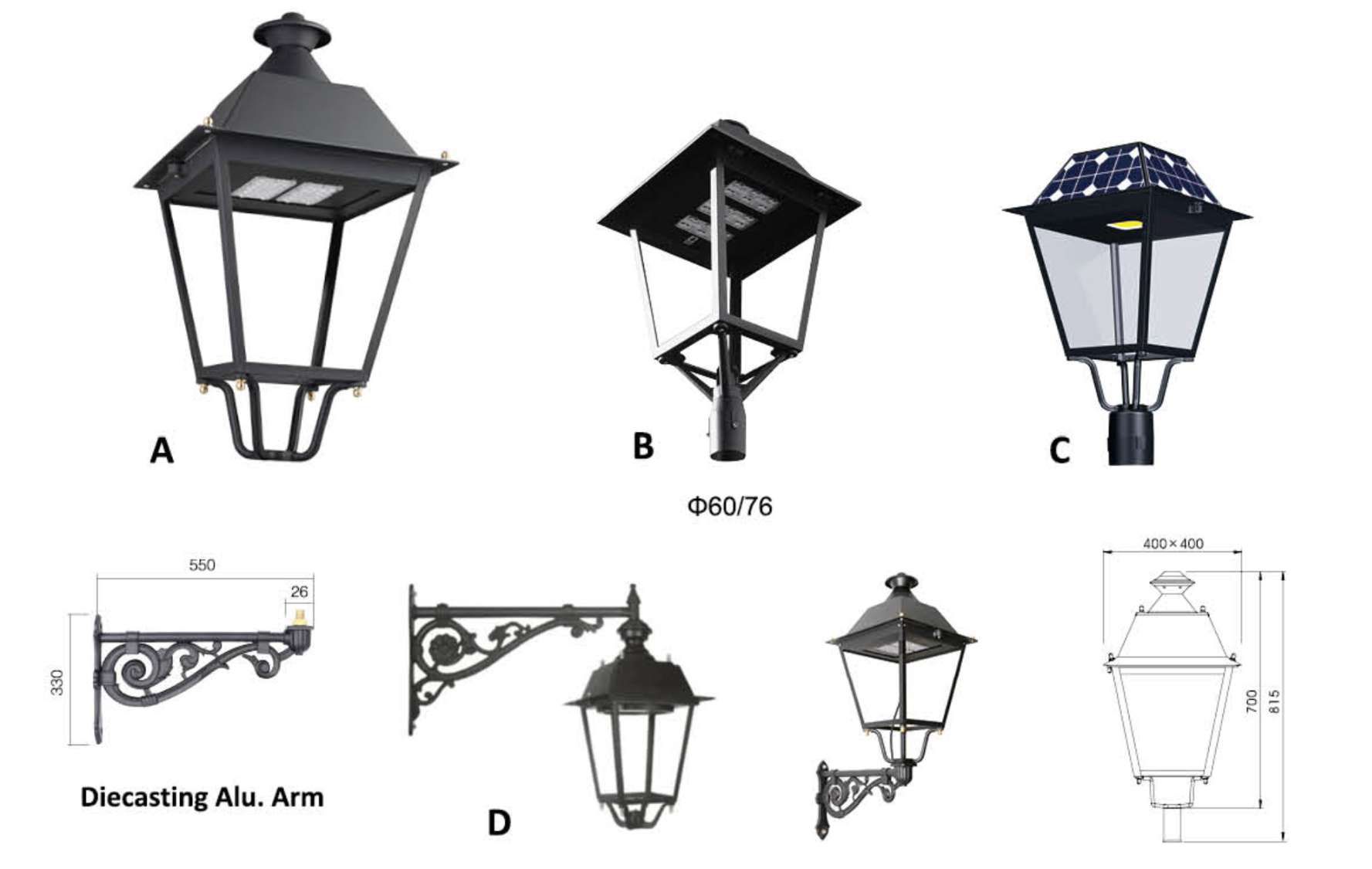

9, Mounting: top entry Ø60-76mm
10, Color: Black
11, Warranty:5 years
12, Material:Diecasting aluminum

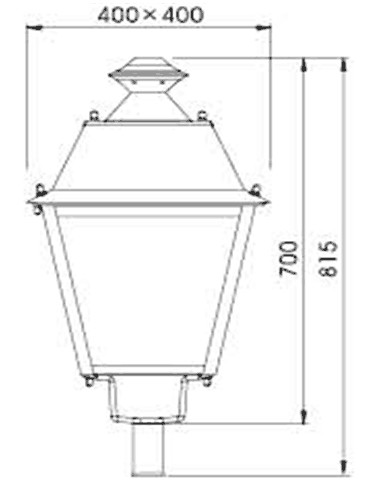

Product Size:
Parameter:
| Item | Model | Product Size | House Weight | Installtion Spigot | Led Brand | Driver Brand | CCT | SPD | Protect Class | Warranty |
| 1 | SY-1603A-40W | 400*400*700mm | N.W.:
4.5 KGS G.W. :5.5 KGS | 27mm | Lumileds
3030 48Leds | Meanwell XLG | 3000-6500K | 10KV+10KA | IP66 >=IK08 | 5Years |
| SY-1603A-60W | 27mm | Lumileds
3030 63Leds | Inventronics EUC | |||||||
| 2 | SY-1603B-40W | 400*400*700mm | N.W.
:5.3KGS G.W.: 6.3 KGS | 60mm | Lumileds
3030 48Leds | Meanwell XLG | 3000-6500K | 10KV+10KA | IP66 >=IK08 | 5Years |
| SY-1603B-60W | 60mm | Lumileds
3030 63Leds | Inventronics EUC | |||||||
| SY-1603B-40W | N.W.
:5.5KGS G.W.: 6.5 KGS | 76mm | Lumileds
3030 48Leds | Meanwell XLG | 3000-6500K | 10KV+10KA | IP66 >=IK08 | 5Years | ||
| SY-1603B-60W | 76mm | Lumileds
3030 63Leds | Inventronics EUC |
